10 kW | 34 000 Btu
EE1000+
- 10 l/h
- 10 m
- ~ < 20 db(A) DIN EN 3744

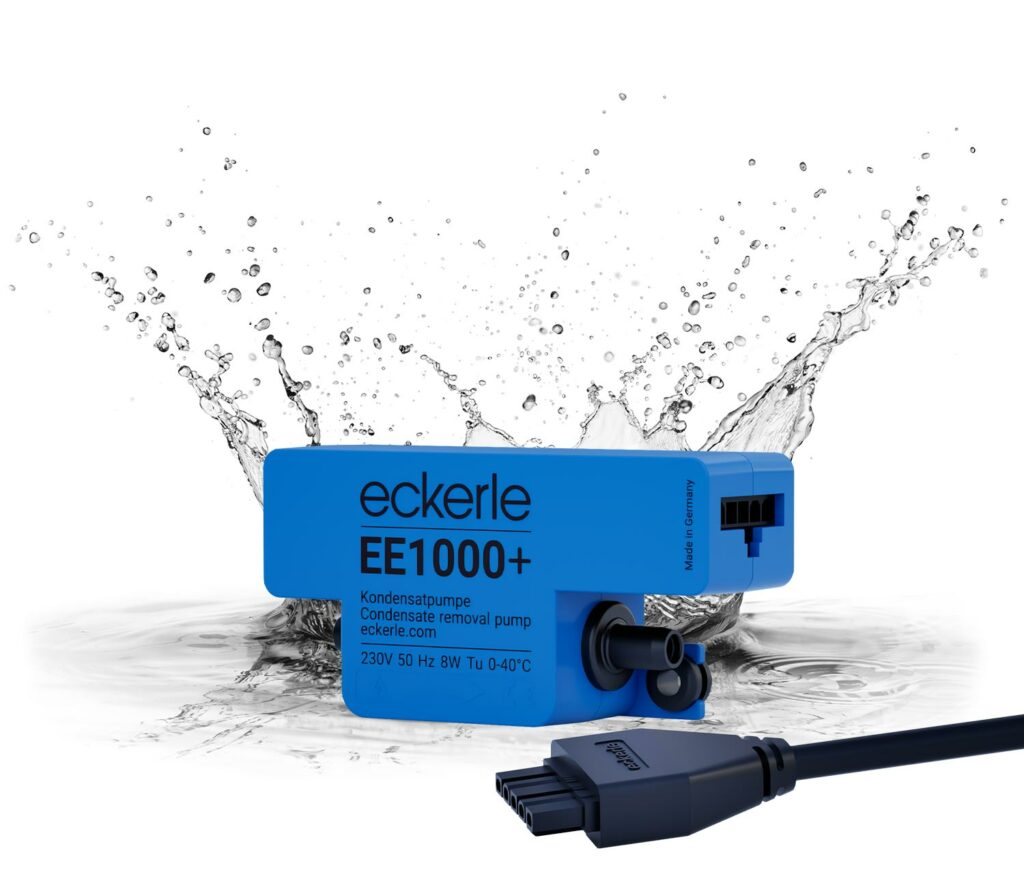

The EE1000+ is a mini-condensate pump suitable for air conditioning units with a capacity of up to 10 kW. It operates at a very low noise level of under 20 dB(A) according to DIN EN 3744 and offers an ultra-compact, space-saving solution for condensate drainage.

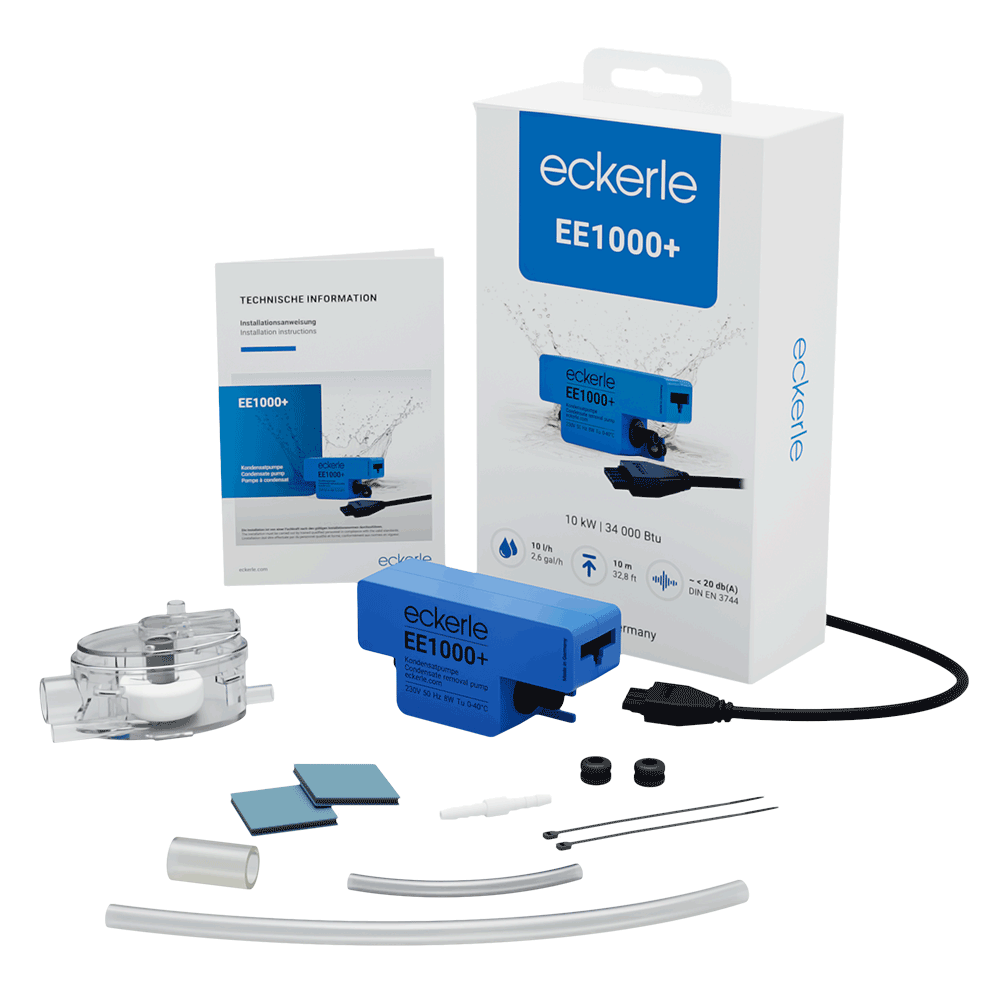

- pump block with vibration dampers
- detachable power cable
- three – stage – float switch with filter
- 300mm acoustic damping/reducing discharge tube (6mm ID) with hose connector
- PVC vent hose
- 2x cable ties
- 2x double sided padded tape
- silicon hose (internal diameter 15 mm, length 40 mm – connects to split drain hose)
| Noise level | 27 dB (A) DIN EN 3745 ~ < 20 dB(A) DIN EN 3744 |
| For air conditioners up to | 10 kW |
| Drive | Solenoid pump |
| Mains voltage & frequenxy | 230V, 50/60Hz |
| Power consumption | Operation 8W, Standby 1 W |
| Max. flow rate | 10 l/h |
| Max. delivery height | 10 m |
| Max. suction height | 1,5 m |
| Pump unit (L x W x H) | 96 × 31 × 50 mm |
| Float switch (L x W x H) | 82 x 39 x 39 mm |
| Switch points float switch | Alarm: max. 23 | Start: 20 ± 1 | Stop: 15 ± 1 |
| Alarm switch | max. 230V, 8A (ohmix load) | NO normally open | NC normally closed |
| Pressure, suction hose | 6 x 1,5 mm |
This model is especially well-suited for mini-split, wall-mounted, and slim ceiling units with limited space. It is ideal for compact installation environments where efficient condensate removal is required.
Installation video
"Watch Our Step-by-Step Video Guide Now!"
