10 kW | 34 000 Btu
EE1200RAPIDO
- 10 l/h
- 10 m
- ~ < 20 db(A) DIN EN 3744

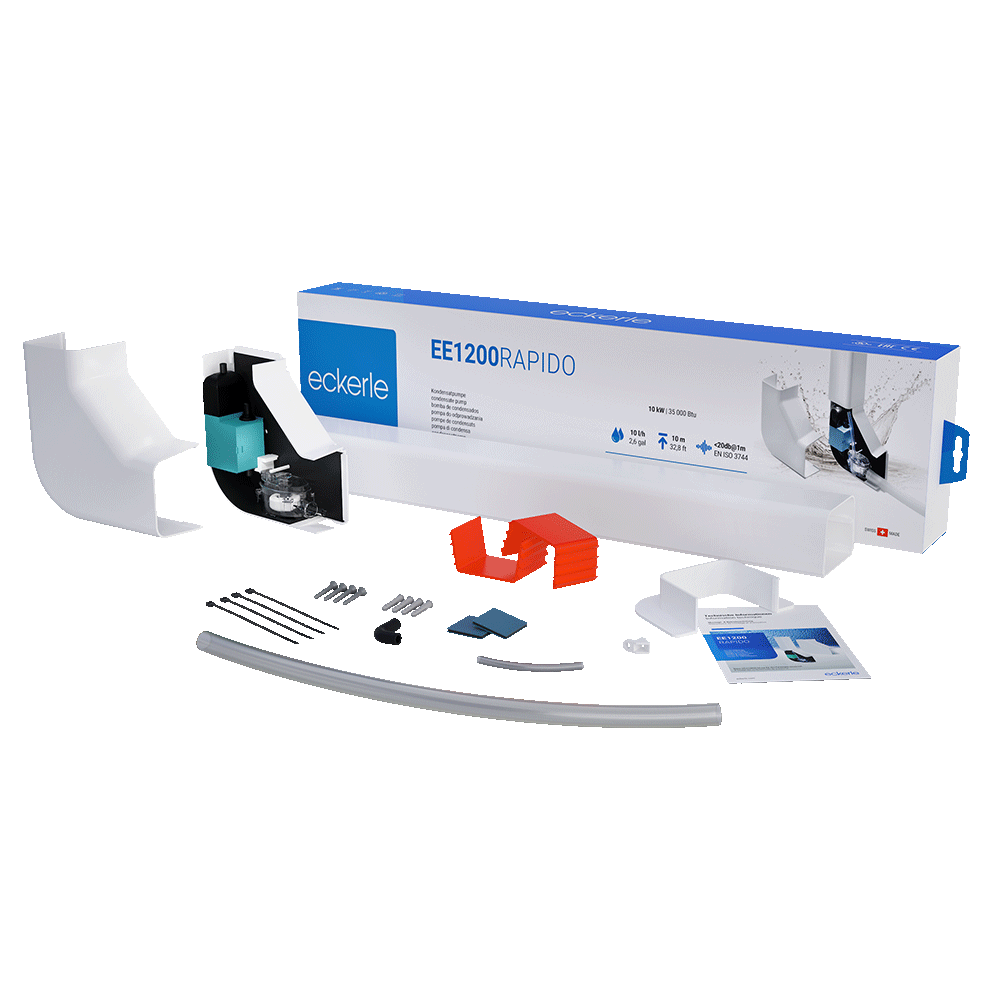

The EE1200RAPIDO comes in a set with a duct, an elbow, a ceiling seal and installation accessories in actual RAL 9016 colour “traffic white”.
-
pump block
-
three-stage-float switch with filter
-
duct (800 x 80 x 60 mm)
-
two part elbow (back plate + cover)
-
ceiling duct cover
-
silicon hose (internal diameter 15 mm – connects to split drain hose)
-
PVC vent hose
-
4x screws and plugs for fixing duct and elbow
-
straight hose connector
-
4x cable ties
-
90° elbow tube
-
2 x installation clamp for the duct
-
Hose connector for duct
-
2x double sided padded tape
| Noise level | 27 dB (A) DIN EN 3745 ~ < 20 dB(A) DIN EN 3744 |
| For air conditioners up to | 10 kW |
| Drive | Solenoid pump |
| Mains voltage & frequenxy | 110V or 230V, 50/60Hz |
| Power consumption | Operation 8W, Standby 1 W |
| Max. flow rate | 10 l/h |
| Max. delivery height | 10 m |
| Max. suction height | 1,5 m |
| Pump unit (L x W x H) | 82 × 39 × 39 mm |
| Float switch (L x W x H) | 82 x 39 x 39 mm |
| Switch points float switch | Alarm: max. 23 | Start: 20 ± 1 | Stop: 15 ± 1 |
| Alarm switch | max. 230V, 8A (ohmix load) | NO normally open | NC normally closed |
| Pressure, suction hose | 6 x 1,5 mm |

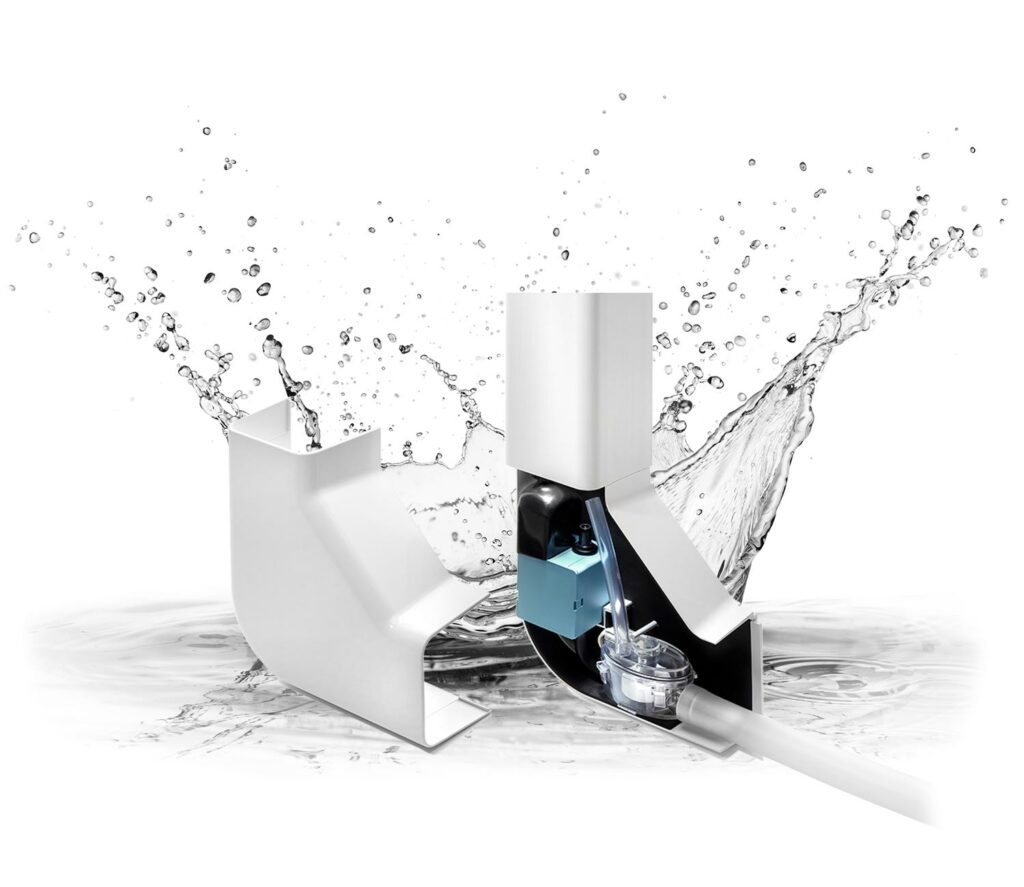

The EE1200RAPIDO has been specifically designed for direct installation into the Eckerle-duct-system. The EE1200RAPIDO is fitted with a high quality Swiss made piston pump, as are all Eckerle volumetric systems. These pumps were specially developed to deliver condensate water. They offer wide opening duck-bill-valves (non-sensitive against water borne contaminants) and further-more they run remarkably quiet. These design and component features ensure a pump system with a long life expectancy. They provide a higher-than-average performance even at great delivery heights.
Special Features:
- Space for refrigerant pipes
- Quick bending of pipes
- Simplified maintenance
- Extremely silent pumps
- Aesthetic
- UL approved
