10 kW | 34 000 Btu
EE150
- 120 l/h
- 1,5 m
- ~ < 23 db(A) DIN EN 3744
- 120 l/h
- 1,5 m
- ~ < 23 db(A) DIN EN 3744
- Silent running centrifugal with 1.5 m power cord
- Check valve to prevent back-flow of liquid
- Compact size
- Attractive design
- Cover with well-designed panel
Inside the box
Technical data
Usage
Inside the box
- pump unit and cover
- 2x screws and 2x dowels for fixing
- silicon hose
- kink protection
Technical data
| Noise level | 29 dB (A) DIN EN 3745 ~ < 23 db(A) DIN EN 3744 |
| For air conditioners up to | 10 kW |
| Drive | Centrifugal pump |
| Mains voltage & frequenxy | 230V, 50/60Hz |
| Power consumption | Operation 48W, Standby 0 W |
| Max. flow rate | 120 l/h |
| Max. delivery height | 1,5 m |
| Tank capacity | 0,2 m |
| Pump unit (L x W x H) | 165 × 65 × 85 mm |
| Pressure hose | 8 x 2 mm |
Usage

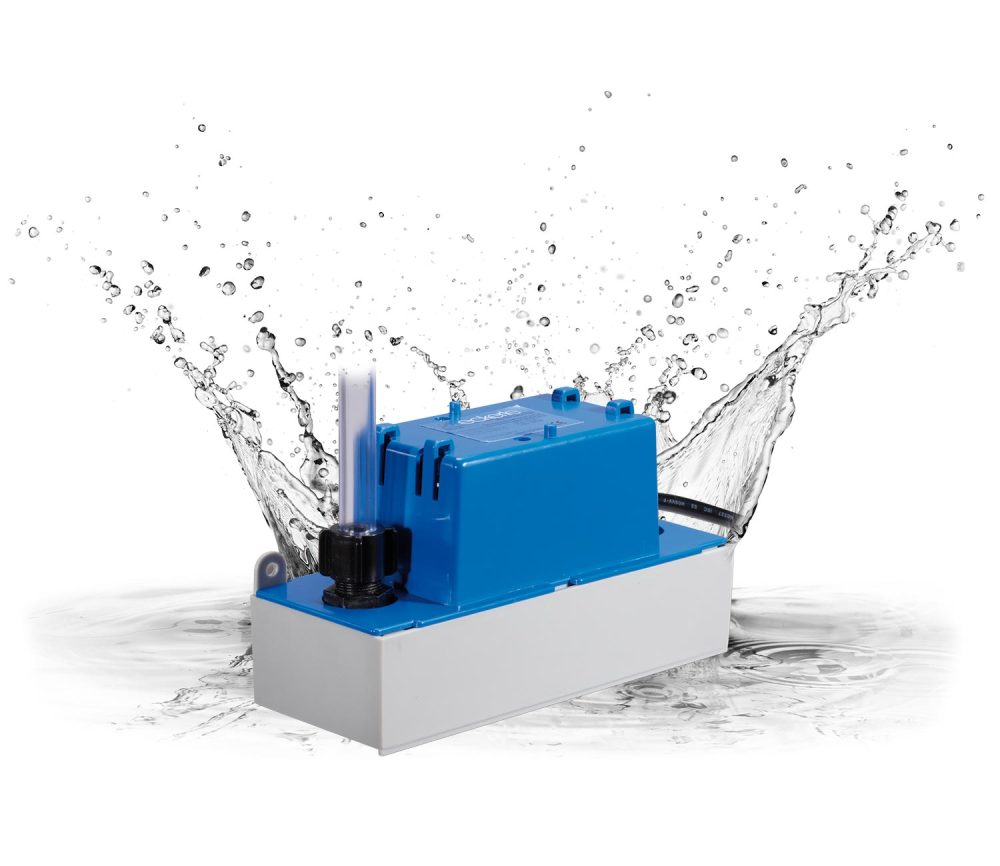

The EE150 is designed to remove condensate water out of air conditioners, evaporator coils and high efficiency gas furnaces automatically. The pump housing is made from an impact-resistant plastic body against corrosion.
Special Features:
- incl. wall cladding; mounting position below the air conditioner
