30 kW | 102 000 Btu
EE1750
- 32 l/h
- 15 m
- ~ < 29 db(A) DIN EN 3744
- 32 l/h
- 15 m
- ~ < 29 db(A) DIN EN 3744

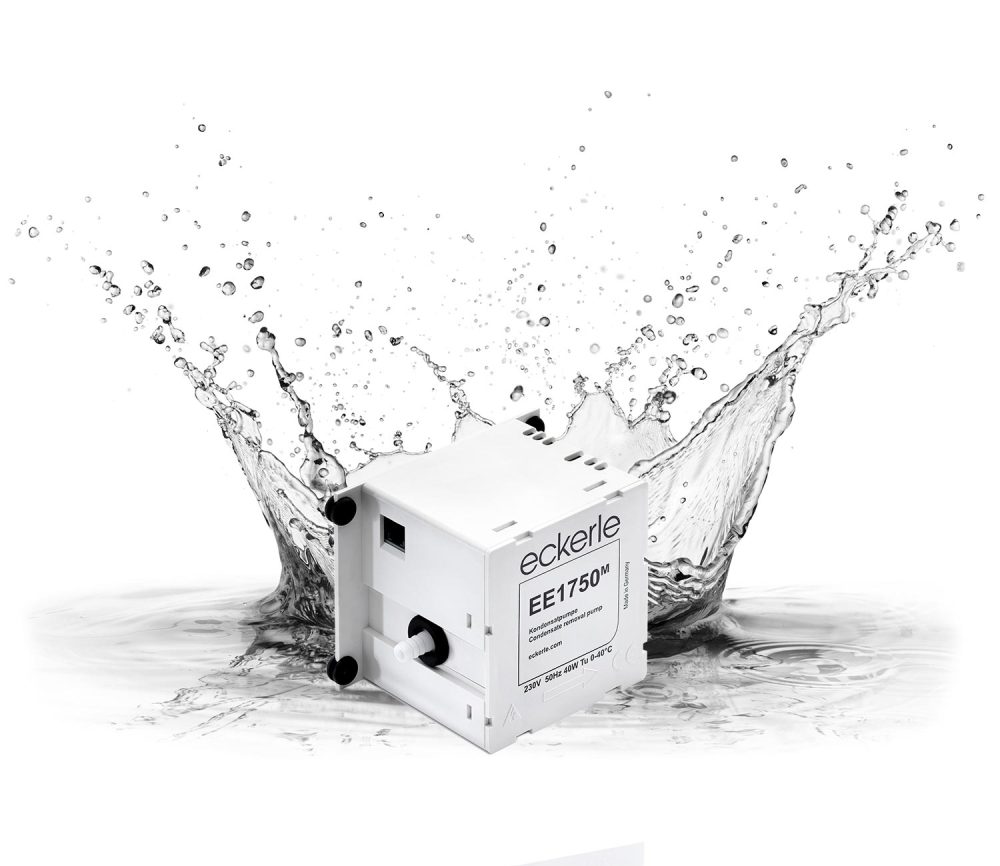

The EE1750 comprises a pump unit and a 3-level float switch sensor. The float switch controls On, Off and Alarm conditions. The float switch unit is fixed to the tank outlet or to a pipe end, it is connected to the pump unit by a 1.5 m/5 ft long pipe and cable (an optional extension is available). The system comes with mounting accessories like pads of double-sided Scotch Tape to fix the float switch and an anti-shock mount for the pump unit.

Inside the box
Technical data
Usage
Inside the box
- pump unit
Technical data
Noise level | 35 dB (A) DIN EN 3745 ~ < 29 dB(A) DIN EN 3744 |
For air conditioners up to | 30 kW |
Drive | Solenoid pump |
Mains voltage & frequenxy | 230V, 50/60Hz |
Power consumption | Operation 40W, Standby 1 W |
Max. flow rate | 32 l/h |
Max. delivery height | 15 m |
Max. suction height | 3 m |
Pump unit (L x W x H) | 100 × 81,5 × 67 mm |
Float switch (L x W x H) | 82 x 39 x 39 mm |
Switch points float switch | Alarm: max. 23 | Start: 20 ± 1 | Stop: 15 ± 1 |
Alarm switch | max. 230V, 8A (ohmix load) | NO normally open | NC normally closed |
Pressure, suction hose | 6 x 1,5 mm |
Usage
This float type pump is used in conjunction with air conditioners which have condensate collection tanks with an outlet on the drainage pipework: Cassette, ceiling unit, split, fan convectors.
Special features:
- high flow rate & pump capacity
