20 kW | 68 000 Btu
EE1800+
- 18 l/h
- 10 m
- ~ < 22 db(A) DIN EN 3744

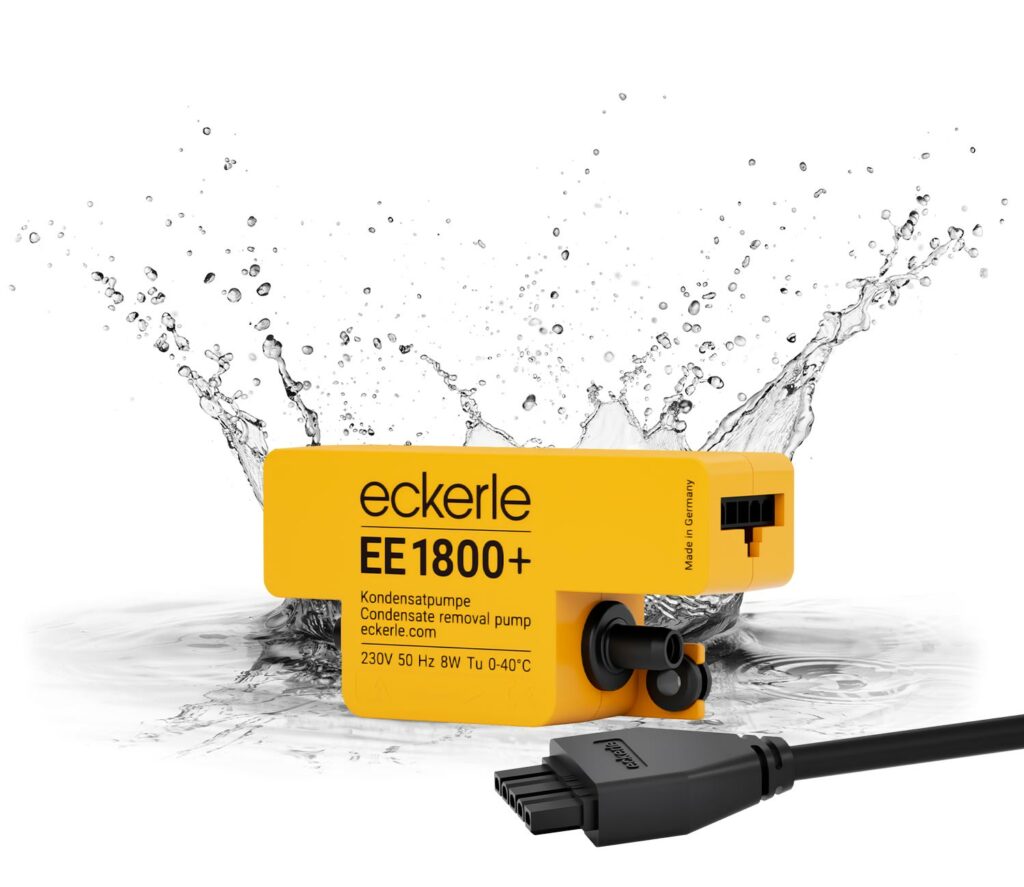

The EE1800+ is a mini-condensate pump designed for air conditioning units with a capacity of up to 20 kW. It operates with a quiet noise level of under 22 dB(A) in compliance with DIN EN 3744, providing a space-saving, ultra-compact solution for condensate drainage.

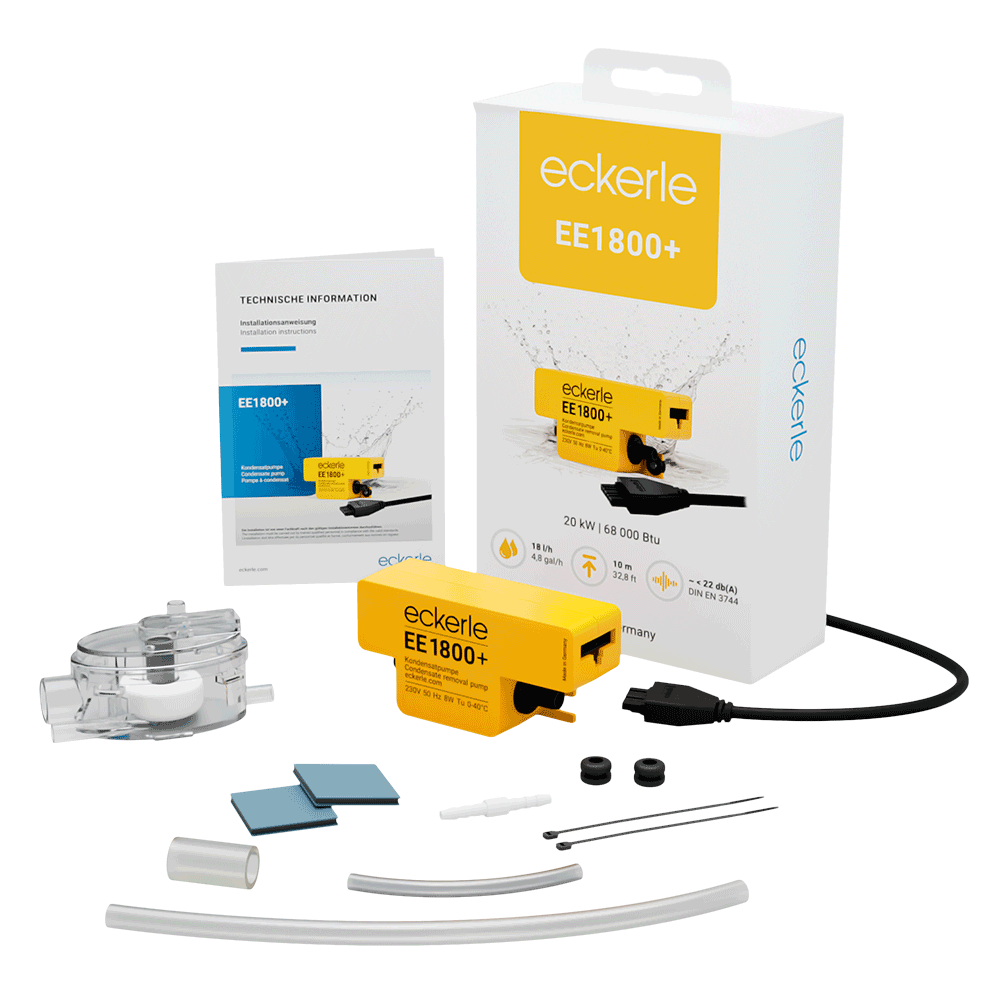

- pump block with vibration dampers
- detachable power cable
- three – stage – float switch with filter
- 300mm acoustic damping/reducing discharge tube (6mm ID) with hose connector
- PVC vent hose
- 2x cable ties
- 2x double sided padded tape
- silicon hose (internal diameter 15 mm, length 40 mm – connects to split drain hose)
| Noise level | 28 dB (A) DIN EN 3745 ~ < 22 dB(A) DIN EN 3744 |
| For air conditioners up to | 20 kW |
| Drive | Solenoid pump |
| Mains voltage & frequenxy | 230V, 50/60Hz |
| Power consumption | Operation 14W, Standby 1 W |
| Max. flow rate | 18 l/h |
| Max. delivery height | 10 m |
| Max. suction height | 2,5 m |
| Pump unit (L x W x H) | 96 × 31 × 50 mm |
| Float switch (L x W x H) | 82 x 39 x 39 mm |
| Switch points float switch | Alarm: max. 23 | Start: 20 ± 1 | Stop: 15 ± 1 |
| Alarm switch | max. 230V, 8A (ohmix load) | NO normally open | NC normally closed |
| Pressure, suction hose | 6 x 1,5 mm |
This model is ideal for use in mini-split, wall-mounted, and narrow ceiling units in tight installation environments. The pump is specifically designed to efficiently handle larger amounts of condensate.
