10 kW | 34 000 Btu
EE200
- 10 l/h
- 20 m
- ~ < 19 db(A) DIN EN 3744
- Low-noise membrane pump with 1.5 m power cord
- Integrated non-return valve prevents the backflow of condensate into the container
- Compact construction
- Attractive design
- Stylish wall cladding
- Easy installation
Inside the box
Technical data
Usage

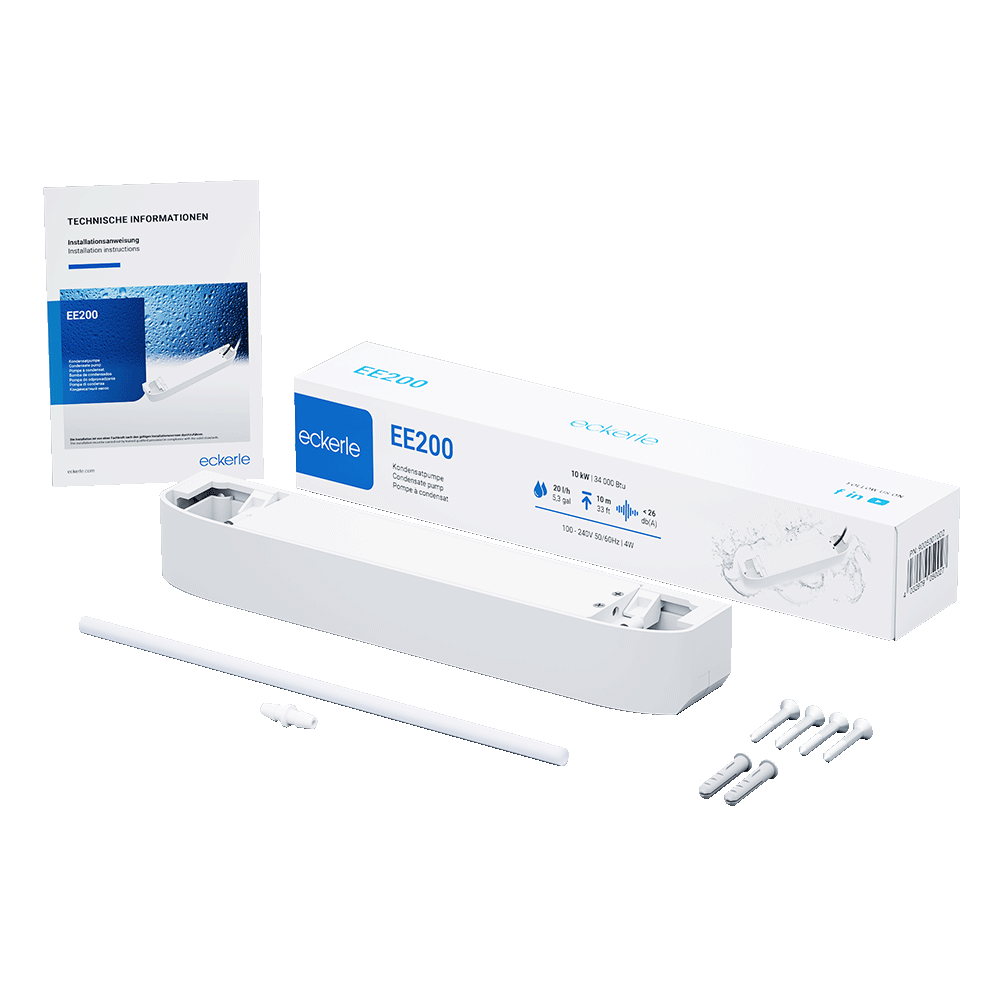

Inside the box
- pump
- 4x screws and 2x dowels for fixing
- straight hose connector
- silicon hose
Technical data
| Noise level | 26 dB (A) DIN EN 3745 ~ < 19 dB(A) DIN EN 3744 |
| For air conditioners up to | 10 kW |
| Drive | Membrane pump |
| Mains voltage & frequenxy | 100-240V, 50/60Hz |
| Power consumption | Operation 4W, Standby 1,5 W |
| Max. flow rate | 20 l/h |
| Max. delivery height | 10 m |
| Max. suction height | 1,5 m |
| Pump unit (L x W x H) | 315 × 54 × 53 mm |
| Alarm switch | 100-240V, 5A, NC normally closed |
| Pressure hose | 6 x 1,5 mm |
Usage
The EE200 is designed to remove condensate water out of air conditioners. The pump can be installed directly under the air conditioning system on the left or right.
Installation video
"Watch Our Step-by-Step Video Guide Now!"
