50 kW | 170 600 Btu
EE300
- 200 l/h
- 4 m
- ~ < 24 db(A) DIN EN 3744
- 200 l/h
- 4 m
- ~ < 24 db(A) DIN EN 3744
- Low-noise centrifugal pump with 1.5-metre-long mains cable
- integrated non-return valve prevents the backflow of condensate into the container
- Compact construction
Inside the box
Technical data
Usage
Inside the box
- pump unit
Technical data
| Noise level | 30 dB (A) DIN EN 3745 ~ < 24 dB(A) DIN EN 3744 |
| For air conditioners up to | 50 kW |
| Drive | Centrifugal pump |
| Mains voltage & frequenxy | 230V, 50/60Hz |
| Power consumption | Operation 65W, Standby 0 W |
| Max. flow rate | 200 l/h |
| Max. delivery height | 4 m |
| Tank capacity | 1 l |
| Pump unit (L x W x H) | 200 × 105 × 160 mm |
| Pressure hose | 8 x 2 mm |
Usage

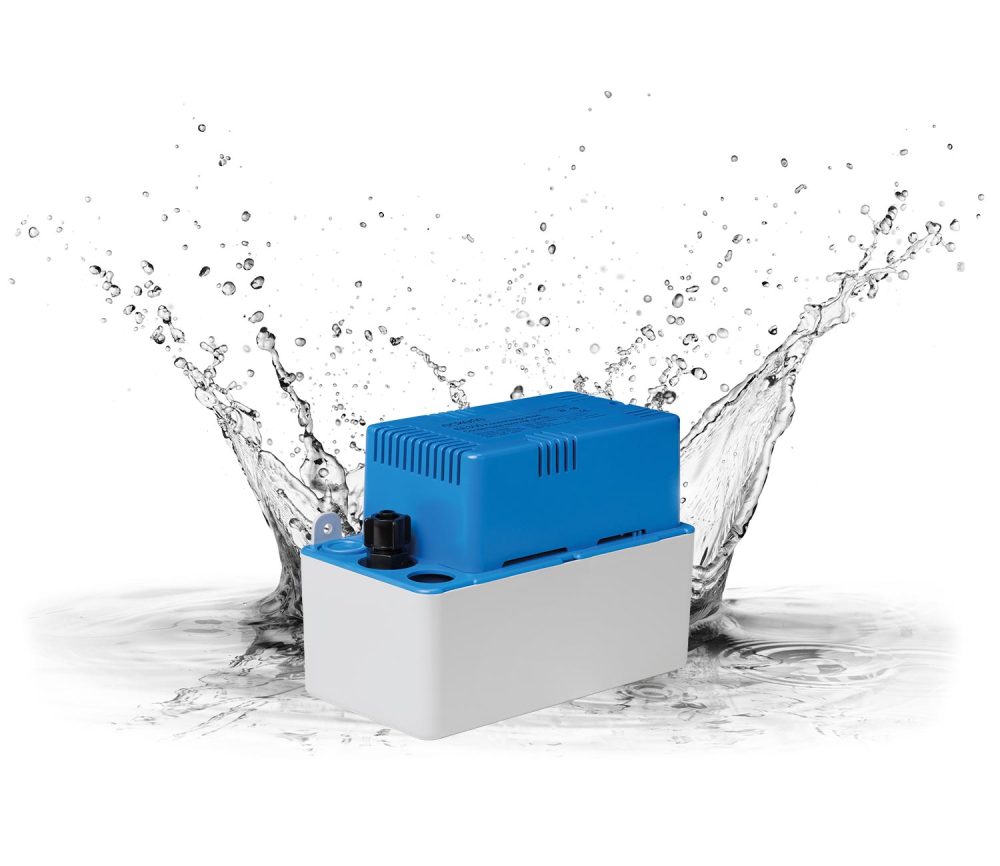

The 300 tank pump is designed for the transport of condensate from air conditioning systems, refrigeration counters, dehumidifiers and gas condensing boilers. The housing is made from impact-stable ABS and is chemically resistant to the acidic condensate from condensing boiler systems.
Special Features:
- inexpensive
- robust
