20 kW | 68 000 Btu
- 20 l/h
- 10 m
- ~ < 19 db(A) DIN EN 3744
- 20 l/h
- 10 m
- ~ < 19 db(A) DIN EN 3744

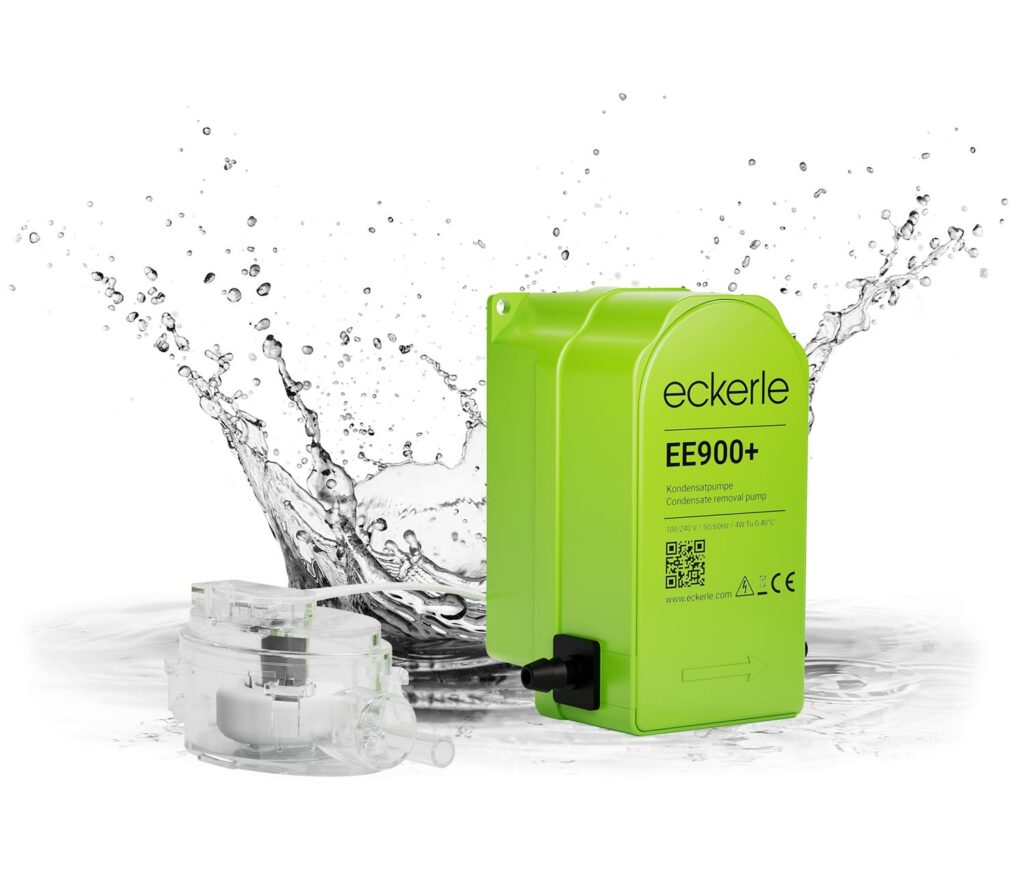

The EE900+ is the world’s first condensate pump to offer two integrated detection interfaces:
- Temperature-difference measurement (8 K sensitivity)
- A conventional float switch, included as standard
This dual-detection capability eliminates the need to stock pump variants with different sensing methods. With the EE900+, both detection approaches are combined into a single, versatile device.

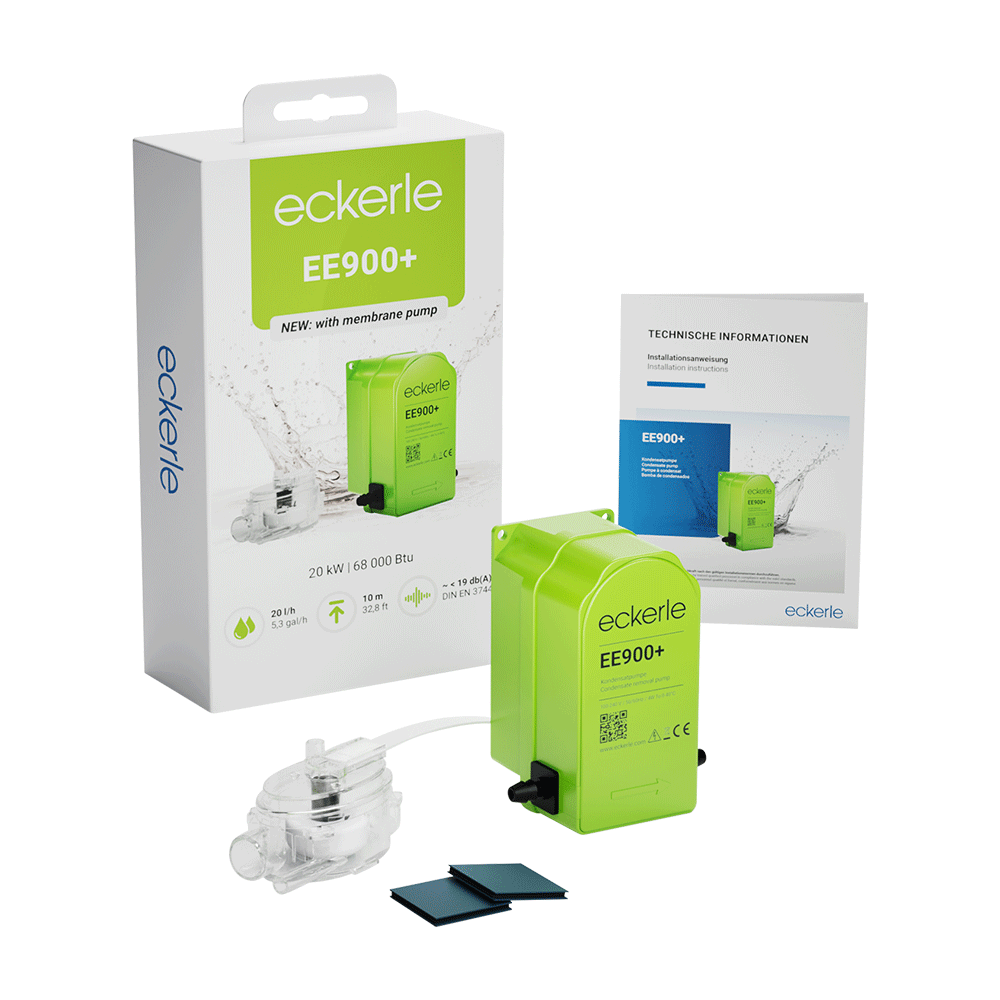

Inside the box
- Pump with 3-stage float switch with dirt trap
- 2x double-sided foam rubber adhesive tape
| Noise level | 26 dB (A) DIN EN 3745 ~ < 19 dB(A) DIN EN 3744 |
| For air conditioners up to | 20 kW |
| Drive | Membrane pump |
| Mains voltage & frequenxy | 100-240V, 50/60Hz |
| Power consumption | Operation 4W, Standby 1,5W |
| Max. flow rate | 20 l/h |
| Max. delivery height | 10 m |
| Max. suction height | 1,5 m |
| Pump unit (L x W x H) | 102 x 54 x 63 mm |
| Float switch (L x W x H) | 82 x 39 x 39 mm |
| Switch points float switch | Alarm: max. 23 | Start: 18 ± 1 | Stop: 14 ± 1 |
| Alarm switch | 100-240V, 5A (ohmic load) NO normally open NC normally closed |
| Pressure, suction hose | 6 x 1,5 mm |
The whisper-quiet EE900+ is ideal for condensate evacuation in noise-sensitive environments such as bedrooms, hotel rooms, and other comfort-critical spaces.
Designed as a superior alternative to traditional peristaltic pumps, the EE900+ features an ultra-silent membrane pump that significantly reduces operational noise while delivering reliable performance and eliminating the need for frequent peristaltic tubing replacement
The result is a long-lasting, low-maintenance, and highly discreet solution for modern condensate management.
