12 kW | 40 000 Btu
PUMPKIN®15
- 12 l/h
- 10 m
- ~ < 16 db(A) DIN EN 3744
Item No: 9005001500
GTIN: 4032979015002

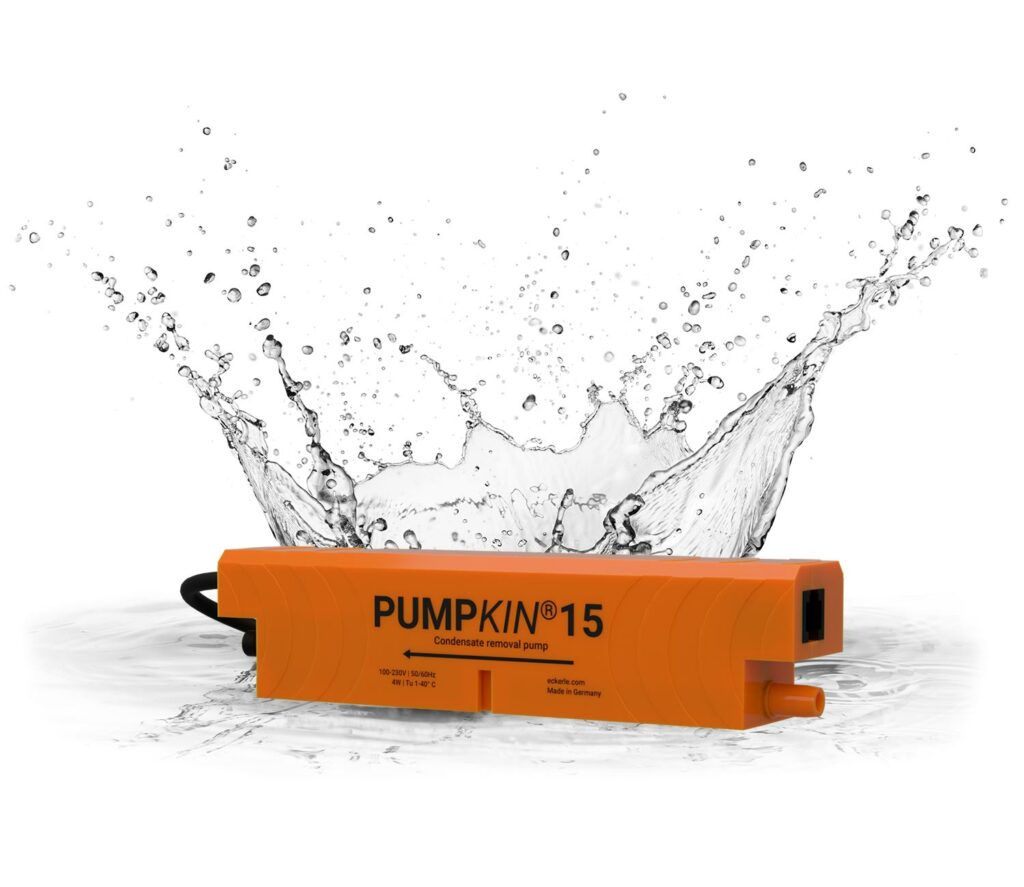

The PUMPKIN®15 consists of a pump unit and a 2-level float switch that controls the pump (switching it on and off). The transparent float unit is connected directly to the outlet pipe of the A/C unit drip tray or to the condensate outlet line. The supplied package includes the pump, the 2-level float switch and mounting accessories, i.e. double-sided padded tape for attaching the float switch and an anti-vibration pad.
- Technical Manual
- Product catalogue
- Flyer
- Technical Manual
- Product catalogue
- Flyer

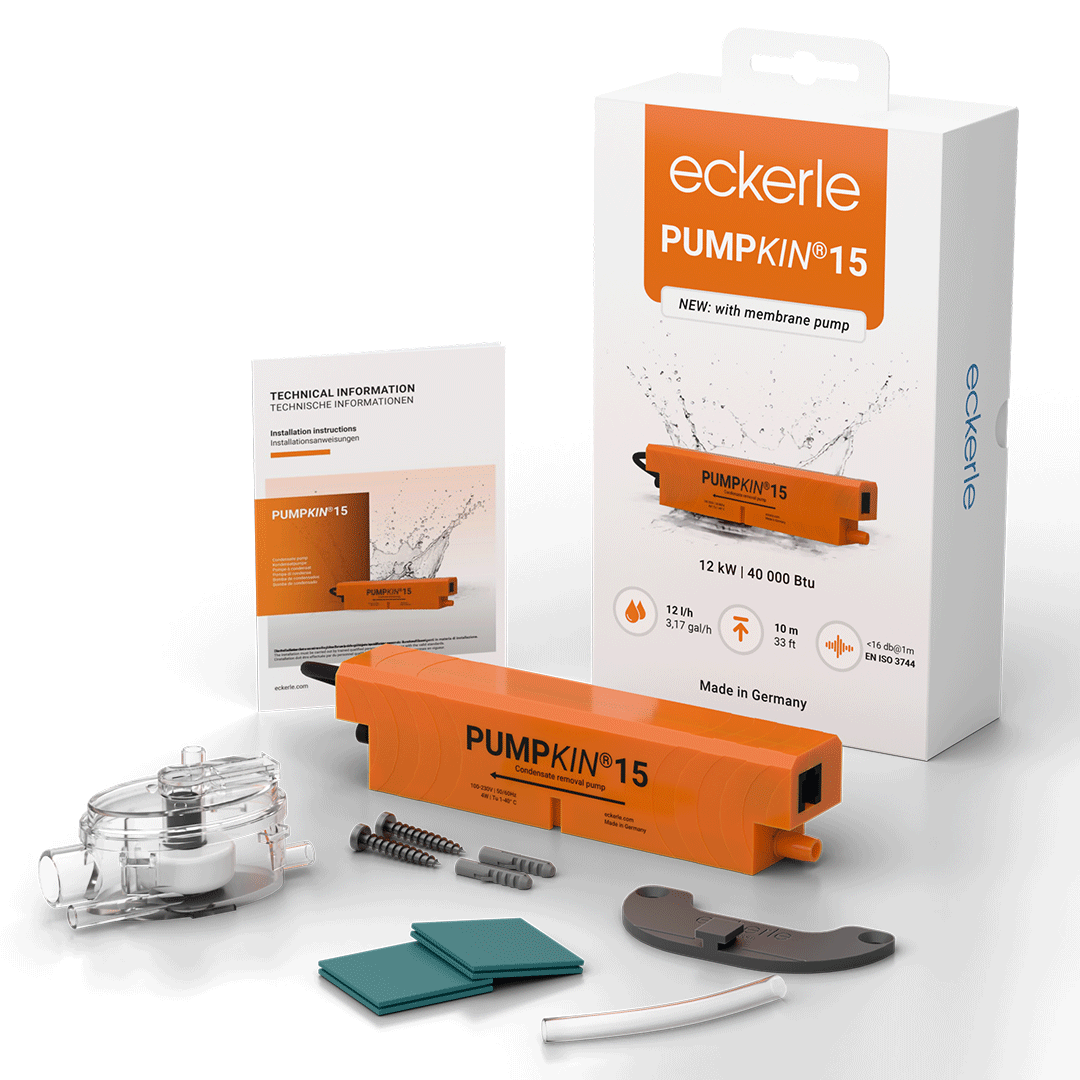

- Pump block
- 2-stage float switch with dirt retainer
- 1× mounting bracket
- PVC vent hose
- 2x double sided padded tape
- Silicon hose (internal diameter 15 mm, length 40mm – connects to split drain hose)
- Mounting kit (2x screws and 2x plugs)
| Noise level | 23 dB (A) DIN EN 3745 ~ < 16 dB(A) DIN EN 3744 |
| For air conditioners up to | 12 kW |
| Drive | Membrane pump |
| Mains voltage & frequenxy | 100-240V, 50/60Hz |
| Power consumption | Operation 4 W, Standby 1,5 W |
| Max. flow rate | 12 l/h |
| Max. delivery height | 10 m |
| Max. suction height | 1,5 m |
| Pump unit (L x W x H) | 166 × 30,6 × 39 mm |
| Float switch (L x W x H) | 82 x 39 x 39 mm |
| Switch points float switch | Alarm: max. 23 | Start: 18 ± 1 | Stop: 14 ± 1 |
| Pressure, suction hose | 6 x 1,5 mm |
| Alarm switch | 100-240V, 5A (ohmic load) NO normally open NC normally closed |
The PUMPKIN®15 is the ideal choice for use in split wall air conditioning systems. With its extremely slim design and low noise level, it is a perfect fit for air conditioners with limited space.
Special Features
- extremely quiet
- ultra slim design
- affordable
- reliable
