18 kW | 60 000 Btu
PUMPKIN®20
- 18 l/h
- 10 m
- ~ < 16 db(A) DIN EN 3744
Item No: 9005001200
GTIN: 4032979012001

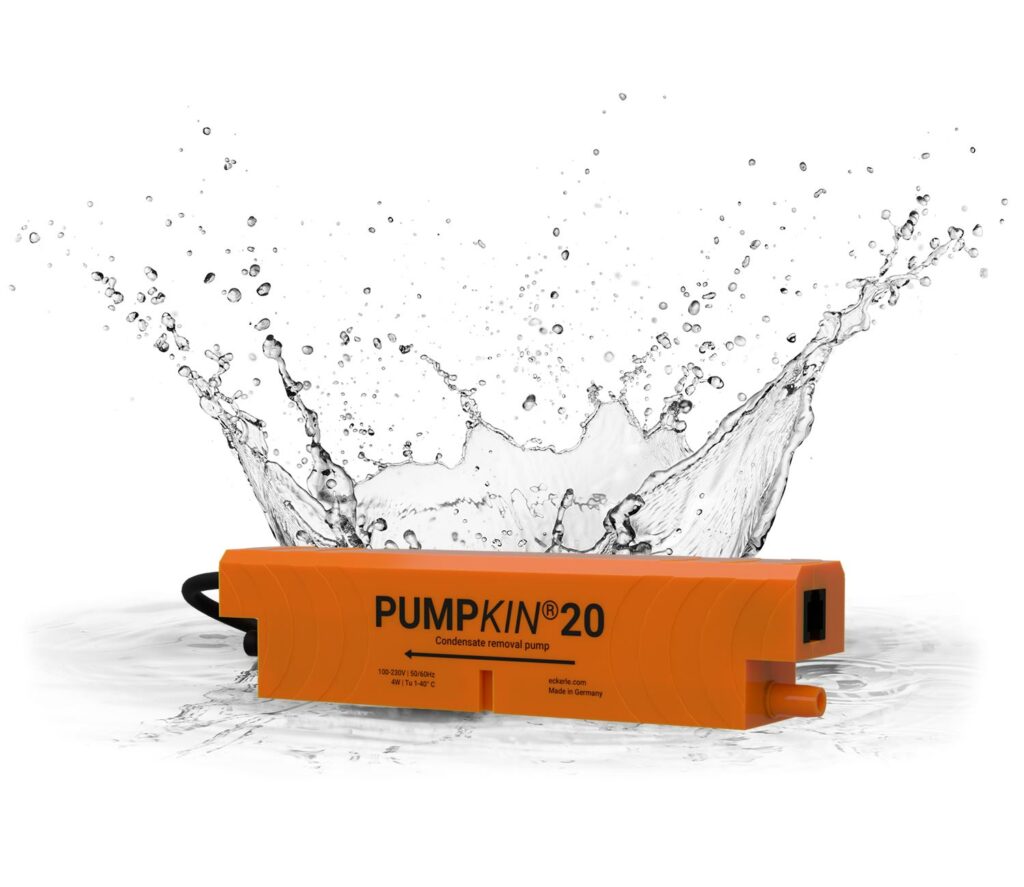

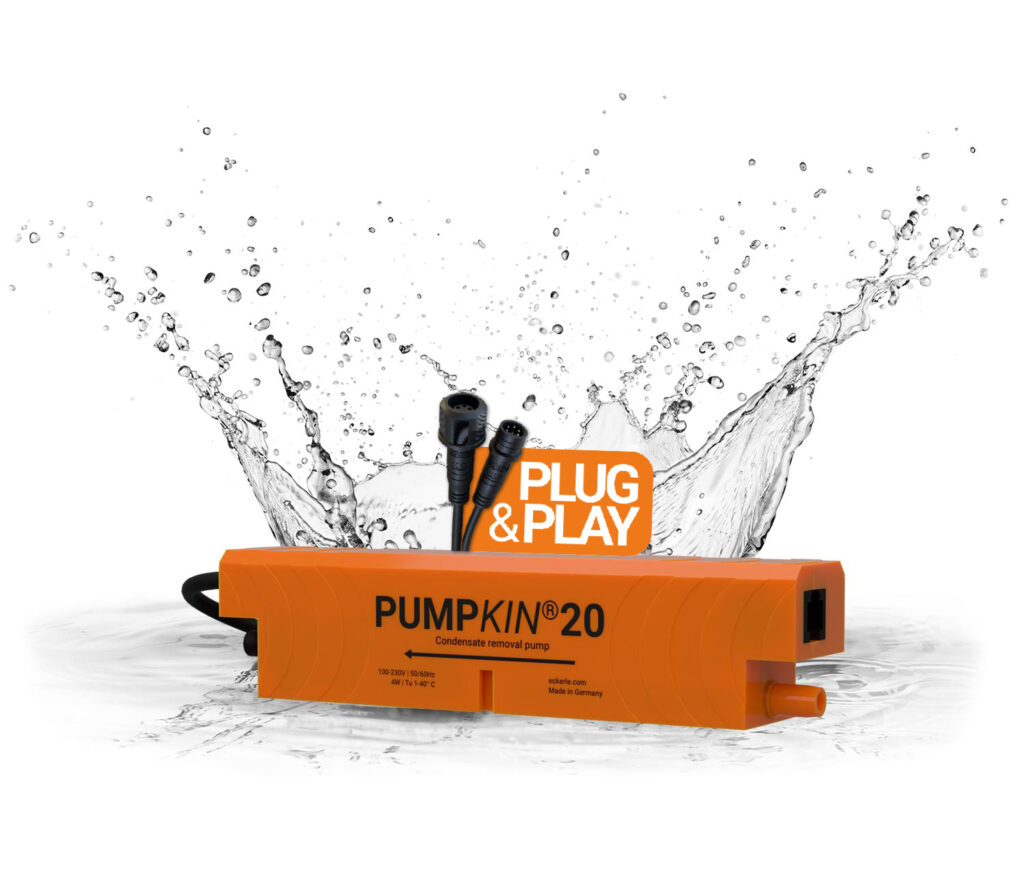

The PUMPKIN®20 consists of a pump unit and a 3-level float switch that controls the pump (switching it on and off). The transparent float unit is connected directly to the outlet pipe of the A/C unit drip tray or to the condensate outlet line. The supplied package includes the pump, the 3-level float switch and mounting accessories, i.e. double-sided padded tape for attaching the float switch and an anti-vibration pad.
- Technical Manual
- Product catalogue
- Flyer
- Technical Manual
- Product catalogue
- Flyer

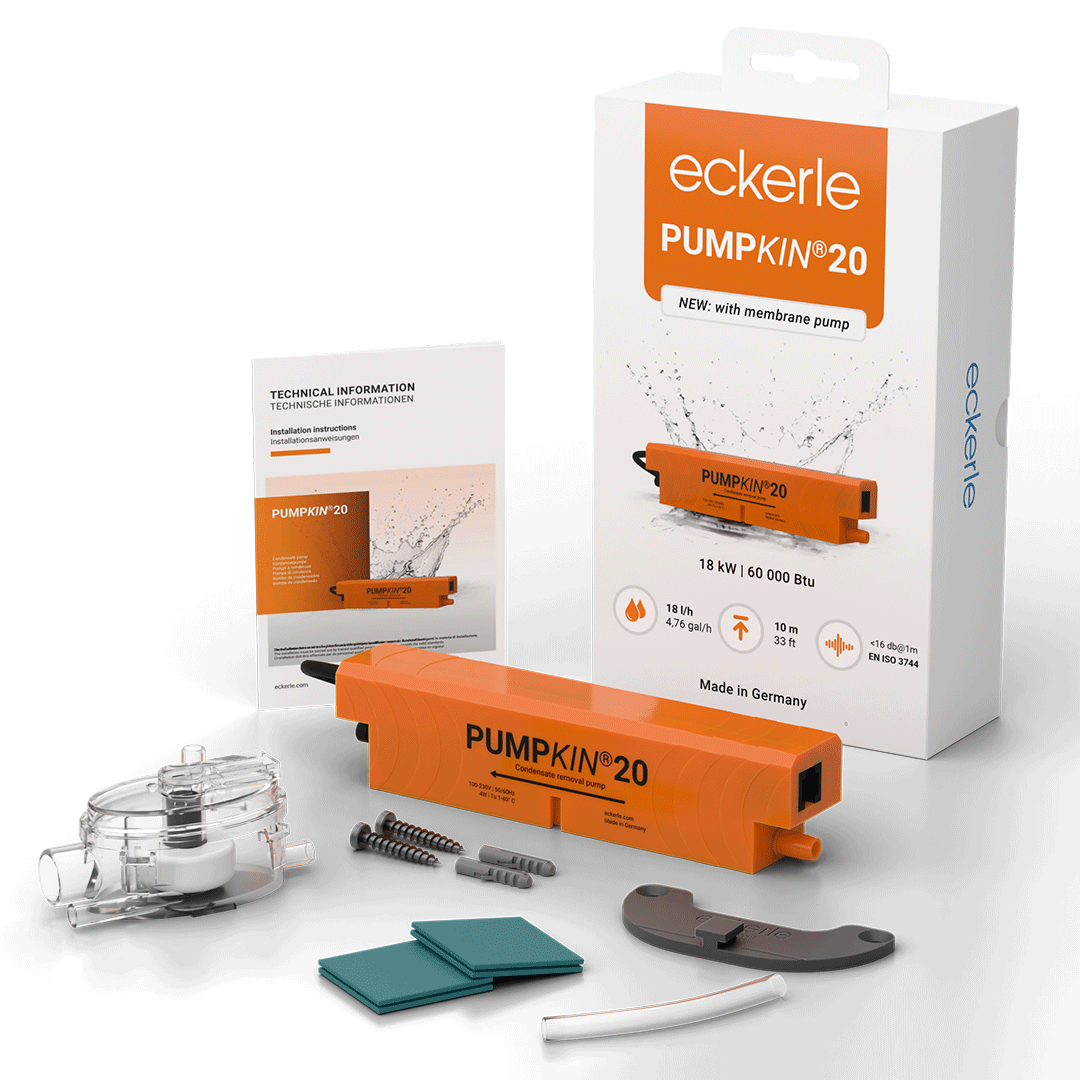

- Pump block
- 3-stage float switch with dirt retainer
- 1× mounting bracket
- PVC vent hose
- 2x double sided padded tape
- Silicon hose (internal diameter 15 mm, length 40mm – connects to split drain hose)
- Mounting kit (2x screws and 2x plugs)
| Noise level | 23 dB (A) DIN EN 3745 ~ < 16 dB(A) DIN EN 3744 |
| For air conditioners up to | 12 kW |
| Drive | Membrane pump |
| Mains voltage & frequenxy | 100-240V, 50/60Hz |
| Power consumption | Operation 4 W, Standby 1,5 W |
| Max. flow rate | 18 l/h |
| Max. delivery height | 10 m |
| Max. suction height | 1,5 m |
| Pump unit (L x W x H) | 166 × 30,6 × 39 mm |
| Float switch (L x W x H) | 82 x 39 x 39 mm |
| Switch points float switch | Alarm: max. 23 | Start: 18 ± 1 | Stop: 14 ± 1 |
| Pressure, suction hose | 6 x 1,5 mm |
| Alarm switch | 100-240V, 5A (ohmic load) NO normally open NC normally closed |
The PUMPKIN®20 is the ideal choice for use in split wall air conditioning systems. With its extremely slim design and low noise level, it is the perfect fit for air conditioners with limited space.
Special Features
- extremely quiet
- 3-stage float control
- integrated alarm control
- ultra-slim design
- affordable
- reliable
