7,5 kW | 24 000 Btu
- 6 l/h
- 7 m
- ~ < 19 db(A) DIN EN 3744
- 6 l/h
- 7 m
- ~ < 19 db(A) DIN EN 3744

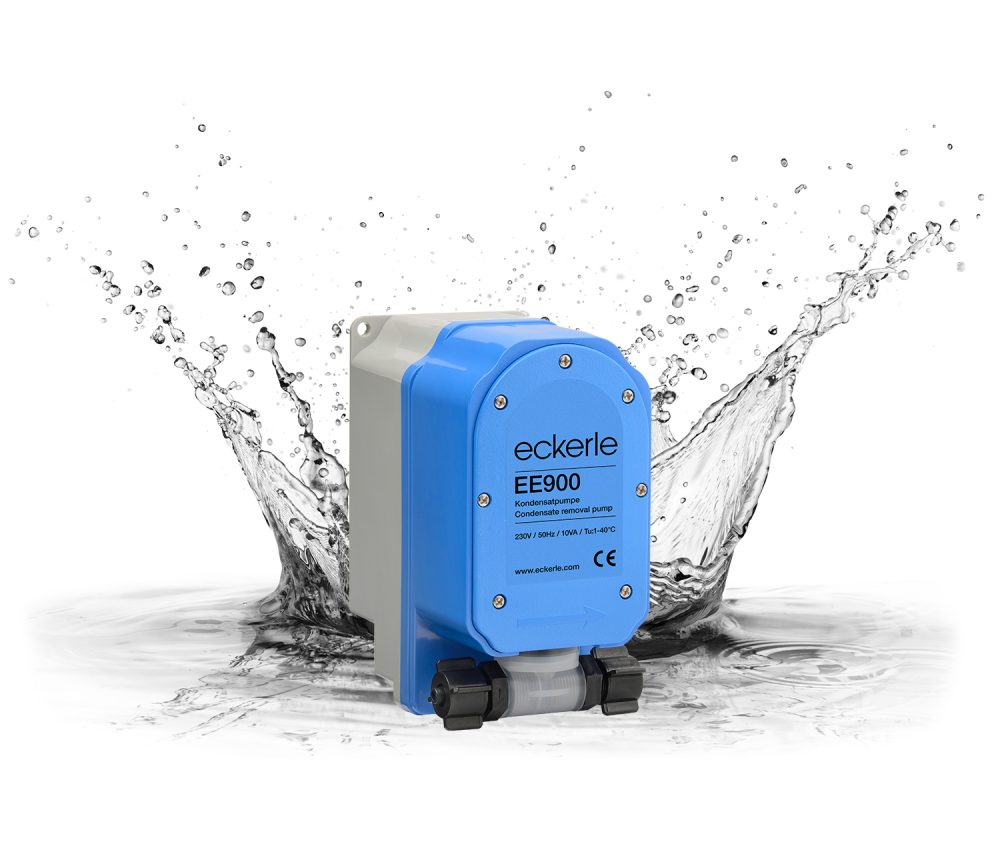

The EE900 is the world’s first condensate pump to feature interfaces for temperature difference measurements (8 Kelvin) or a conventional float switch which is included as standard. This means that various different pump types do not have to be kept in stock, as is the case with comparable units. This pump combines two detection options in a single device.
- pump unit
- three-stage float switch
- temperature sensor optional (not included in the supplied package)
| Noise level | 26 dB (A) DIN EN 3745 ~ < 19 dB(A) DIN EN 3744 |
| For air conditioners up to | 7,5 kW |
| Drive | Rotating piston pump |
| Mains voltage & frequenxy | 230V, 50/60Hz |
| Power consumption | Operation 10W, Standby 1,5W |
| Max. flow rate | 6 l/h |
| Max. delivery height | 7 m |
| Max. suction height | 2 m (4 on demand) |
| Pump unit (L x W x H) | 152 × 85 × 114 mm |
| Float switch (L x W x H) | 82 x 39 x 39 mm |
| Switch points float switch | Alarm: max. 23 | Start: 20 ± 1 | Stop: 15 ± 1 |
| Alarm switch | 48V, 1,5A (ohmic load), NO normally open only wehy using a float switch |
| Pressure, suction hose | 6 x 1,5 mm |
The whisper-quiet and patented EE900 is used to transport condensate especially in noise-sensitive environments such as hotel rooms or bedrooms. Unlike conventional hose pumps, the tedious task of changing expensive hoses rendered obsolete since the EE900 operates on the principle of a reciprocating pump. The very slow movement of the piston produces sensationally quiet noise emissions. Regardless of the maximum pumping height, the pump delivers a constant pumping performance.
