10 kW | 34 000 Btu

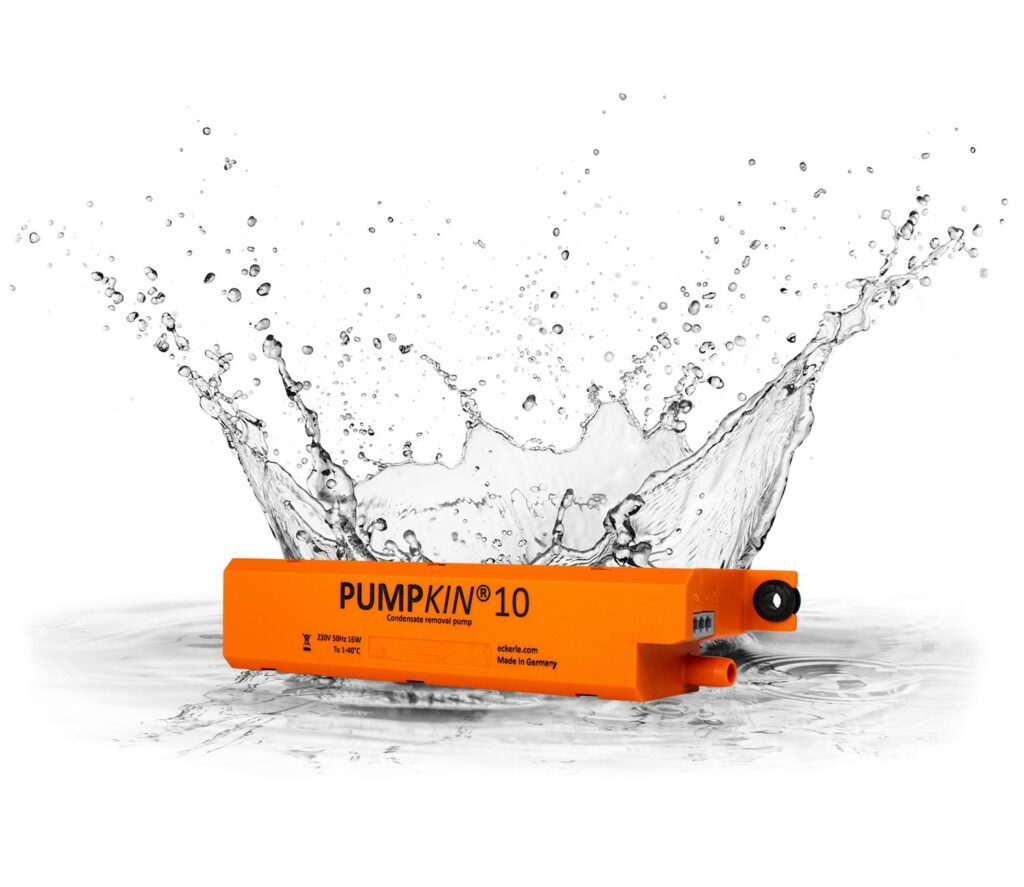

PUMPKIN®10
- 9 l/h
- 10 m
- ~ < 23 db(A) DIN EN 3744
Item No.:
9005001000
Category: 10 kW | 34 000 Btu
The PUMPKIN®10 consists of a pump unit and a 2-level-float switch that controls the pump (switching on and off). The transparent floater is connected directly to the outlet pipe of the condensate vessel or to the end of the outflow line. The supplied package includes the pump, the 2-level float switch and mounting accessories, i.e. double-sided-padded tape to attach the float switch, an anti-vibration mount for the pump and a floater inlet hose.


Inside the box
Technical data
Usage

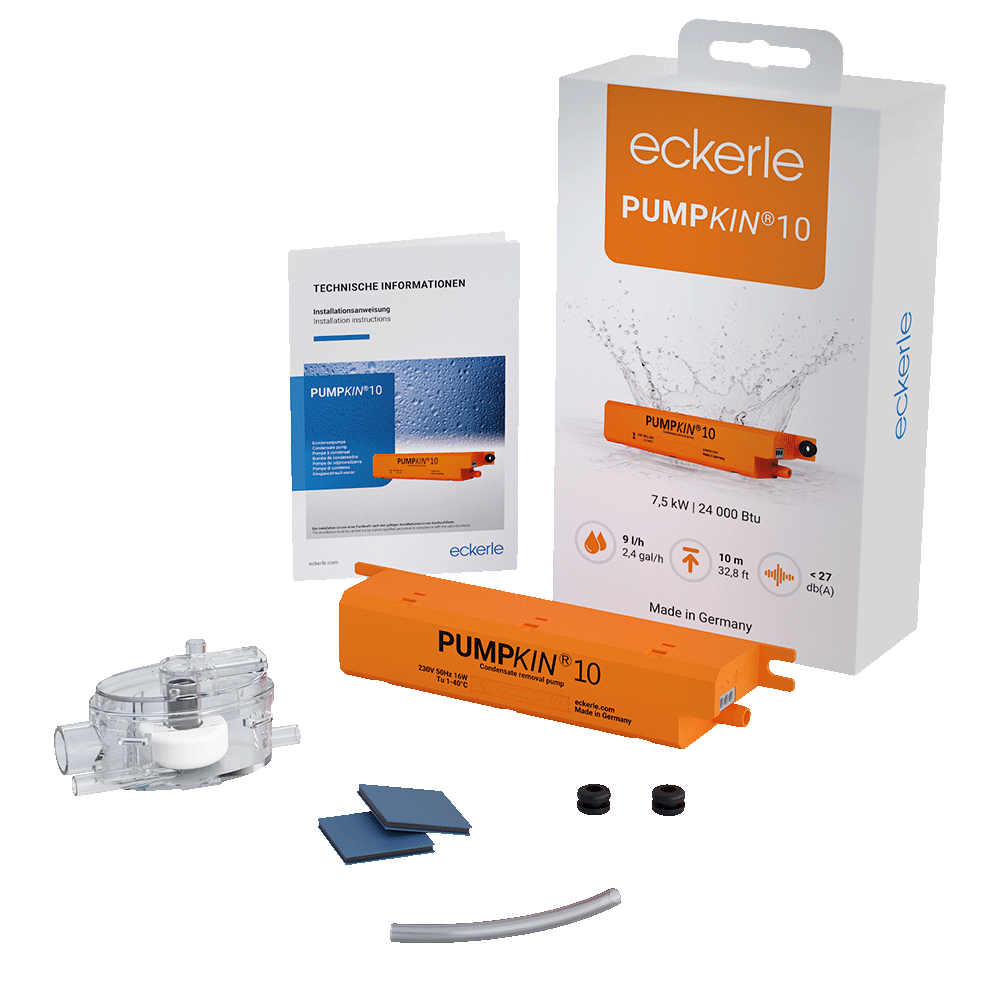

Inside the box
- pump block with vibration dampers
- 2-stage-float switch with filter
- PVC vent hose
- 2x double sided padded tape
- silicon hose (internal diameter 15 mm, length 40mm – connects to split drain hose)
Technical data
Noise level | 29 dB (A) DIN EN 3745 ~ < 23 dB(A) DIN EN 3744 |
For air conditioners up to | 10 kW |
Drive | Solenoid pump |
Mains voltage & frequenxy | 230V, 50/60Hz |
Power consumption | Operation 15W, Standby 1 W |
Max. flow rate | 9 l/h |
Max. delivery height | 10 m |
Max. suction height | 1,5 m |
Pump unit (L x W x H) | 151 × 33 × 33 mm |
Float switch (L x W x H) | 82 x 39 x 39 mm |
Switch points float switch | Start: 20 ± 1 | Stop: 15 ± 1 |
Pressure, suction hose | 6 x 1,5 mm |
Usage
The PUMPKIN®10 is the ideal choice for use in air conditioning systems. With its extreme slim design and low noise level, it is the perfect fit for air conditioners with limited space.
Special features
- extrem slim design
- affordable
- reliable
